The roller manufacturing process defines how precision-engineered rollers are produced for industrial equipment, automated lines, and heavy-duty mechanical assemblies. In technical terms, a roller is a cylindrical component engineered to guide, support, or transfer motion within a mechanical system. Its performance depends on the accuracy of machining, the stability of selected alloys, and the engineering discipline applied throughout each process stage. Understanding **how rollers are made requires examining how SPP CNC Machining transforms raw metal stock into high-performance components through controlled thermal, mechanical, and metrology-driven operations.

Raw Material Selection in the Roller Manufacturing Process

The roller, as a load-bearing and motion-transmitting component, demands materials with high wear resistance, dimensional stability, and fatigue strength. SPP CNC Machining sources alloy steels, stainless steels, and engineered metals chosen for their hardness, machinability, and resistance to thermal distortion. Material certificates are checked to verify compliance with industrial norms such as ISO and ASTM, ensuring that every roller entering production is compatible with strict B2B specifications.
Before machining begins, bars and forgings undergo visual screening and ultrasonic evaluation to eliminate internal voids that could compromise subsequent process stages. This early inspection step is crucial for guaranteeing that the roller is made from defect-free material, ensuring maximum operational longevity.

CNC Turning: Establishing the Roller’s Primary Geometry

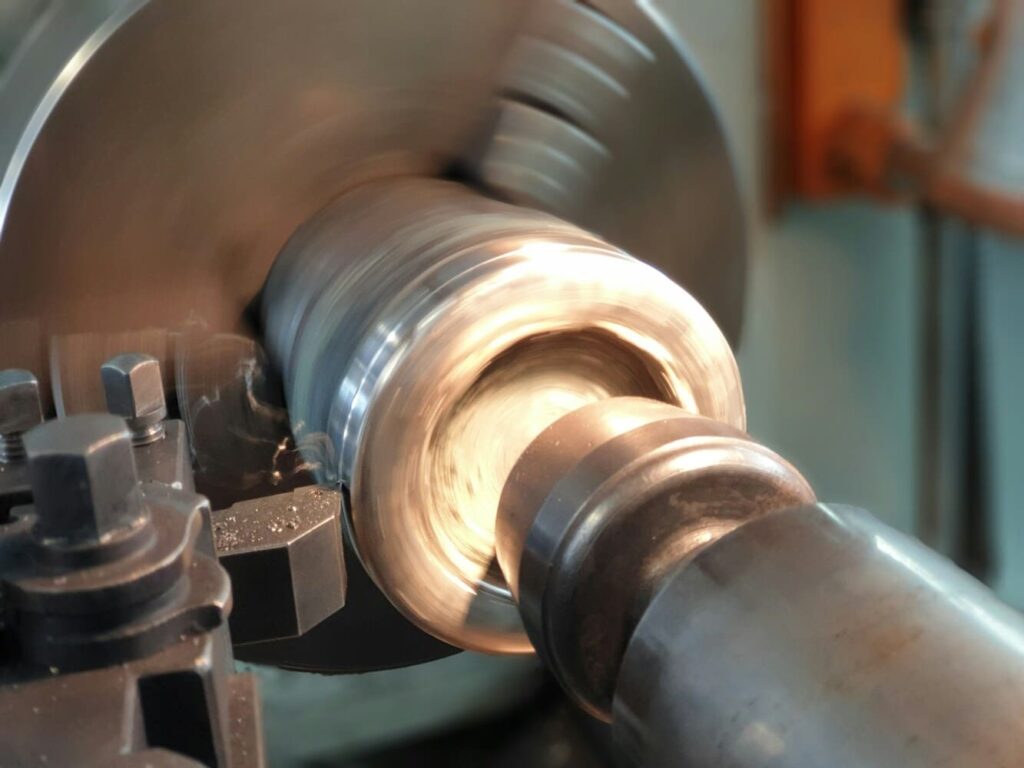

Machining begins with CNC turning, where the roller blank is rotated at controlled speeds to shape its outer diameter. This step defines concentricity, load-bearing zones, and the foundational geometry required for later grinding and finishing. SPP CNC Machining employs multi-axis lathes that maintain micrometer-level tolerances, ensuring every roller conforms to engineering drawings.

In this phase of the roller manufacturing process, rough machining removes excess stock while preserving thermal stability, preventing internal stress accumulation. Coolant delivery systems and energy-efficient spindle controls maintain surface integrity, reducing friction and ensuring that each roller is made with consistency across multiple production cycles.

Precision Milling and Intermediate Process Controls

During the next stage of the roller manufacturing process, precision milling shapes key features such as grooves, chamfers, shoulders, and mounting seats. Multi-axis CNC centers at SPP CNC Machining operate with closed-loop feedback, continuously adjusting tool paths to maintain dimensional integrity. This ensures that each roller meets specified tolerances for diameter, length, and symmetry — parameters crucial for high-speed mechanical systems.

Process engineers monitor spindle load, thermal drift, and real-time vibration signatures to detect deviations early. These controls prevent tool chatter, surface burn, or micro-distortion, ensuring the roller is made with stable structural properties before advancing to heat treatment or grinding. By embedding metrology checkpoints directly into the milling process, SPP CNC Machining guarantees predictable accuracy across high-volume B2B production.

Heat Treatment: Achieving Mechanical Stability in the Roller

Heat treatment forms one of the most decisive phases of the roller manufacturing process, as it determines hardness, wear resistance, and fatigue behavior. Depending on the application, rollers are subjected to quenching, tempering, case hardening, or induction hardening. These controlled thermal cycles strengthen the metal lattice while preserving dimensional stability, allowing the roller to sustain continuous load without deformation.

SPP CNC Machining uses temperature-regulated furnaces and automated monitoring systems to ensure uniform thermal distribution. After each heat-treatment process, hardness testing and microstructure evaluations confirm that the roller has been made in compliance with ISO mechanical standards. This guarantees performance reliability in automated lines, conveyor assemblies, and heavy-load industrial mechanisms.

Grinding Operations in the Roller Manufacturing Process

After heat treatment, precision grinding becomes essential to restore dimensional accuracy and achieve the required surface finish. In the roller manufacturing process, cylindrical grinders equipped with high-stability workholding systems refine the roller’s outer diameter to micrometer-level tolerances. This step is critical for applications where rotational balance, smooth acceleration, and vibration minimization are mandatory.

Engineers at SPP CNC Machining use automated in-process gauges to measure diameter and roundness during grinding. Real-time compensation removes thermal drift and tool wear effects, ensuring each roller is made with consistent structural symmetry. The grinding process not only improves bearing compatibility but also enhances fatigue resistance by refining surface grain direction and eliminating micro-imperfections.

Superfinishing and Surface Enhancement of Rollers

To meet demanding B2B requirements, many rollers undergo advanced surface-conditioning methods, including lapping, polishing, and fine abrasive honing. These roller finishing methods reduce roughness to near-mirror levels, optimizing friction characteristics essential for high-speed rollers in conveyors, printing systems, and automated production modules.

Surface integrity checks follow each finishing process, using profilometers and optical metrology tools to confirm roughness parameters, waviness levels, and contact uniformity of the roller surface. By maintaining extremely low surface deviations, SPP CNC Machining ensures that each roller is not merely made to specification but optimized for prolonged durability under persistent mechanical load.

Roller Shaft Fabrication and Core Structural Processing

At this stage of the roller manufacturing process, the internal roller shaft or core is fabricated to withstand torsional loads, axial pressure, and continuous dynamic stress. Using CNC turning centers and precision milling machines, SPP CNC Machining shapes roller shaft geometries such as stepped diameters, keyways, threaded ends, and mounting interfaces.

Each process parameter — feed rate, cutting speed, coolant flow, and tool geometry — is calibrated to prevent internal stress accumulation. This guarantees that the core roller structure is made with uniform density and predictable mechanical behavior. Engineers verify concentricity and roller shaft straightness using laser-alignment systems, ensuring the roller maintains flawless rotation within the machine assembly.

Assembly of Roller Components and Fit Calibration

In B2B applications, a roller is never a simple cylindrical element — it is a multi-component unit comprising shafts, housings, bushings, bearings, sleeves, or polymer-coated surfaces depending on operational demands. During the assembly phase of the roller manufacturing process, each element is aligned under precision fixtures to ensure balanced rotation and tight assembly interfaces.

Interference fits, thermal shrink-fit assembly, and precision pressing methods are applied based on material pairing and load requirements. Metrology checks follow every assembly process, confirming axial runout, bearing play, and contact uniformity. These controls ensure that the assembled roller is made to handle high-speed acceleration, side loading, or continuous cycles in industrial environments without premature wear.

Coating Processes for Enhanced Roller Performance

In many industrial scenarios, the base metal of the roller requires an additional protective or functional layer. Within the roller manufacturing process, coating operations such as hard chrome plating, anodizing, thermal spraying, or polymer-layer application improve wear resistance, chemical stability, and friction behavior. SPP CNC Machining selects coating options based on load cycles, environmental exposure, and customer specifications.

Each coating process is performed under controlled temperature and humidity conditions to ensure stable adhesion. After the coating layer is applied, the roller is often re-ground or polished to restore dimensional accuracy. This ensures the roller component is not only made to withstand aggressive operating environments but engineered for extended operational cycles in conveyor lines, material-handling systems, and precision machinery. Each roller is carefully checked after coating to confirm that the surface finish and dimensional integrity meet production standards.

Final Dimensional Inspection and Quality Validation

Before shipment, every roller undergoes a series of meticulous inspections to confirm conformity with industrial tolerances. Coordinate measuring machines (CMM), roundness testers, ultrasonic scanners, and laser profilometers verify geometric accuracy, roller shaft straightness, and surface consistency of the roller.

This final inspection process validates each tolerance parameter specified in engineering drawings for the roller. Any deviation triggers corrective actions or reprocessing to maintain SPP CNC Machining’s quality standards. Once validated, the roller is certified as fully made according to ISO-aligned industrial norms and suitable for integration into high-performance mechanical systems.

Documentation, Traceability, and B2B Compliance

In industrial production, a roller is not considered complete until documentation and traceability requirements are fully met. SPP CNC Machining maintains detailed process logs, material certificates, heat-treatment charts, CMM reports, and inspection sheets for every unit. This ensures full traceability throughout the roller manufacturing process, satisfying the expectations of B2B clients who integrate rollers into critical equipment.

By the time each roller is declared fully made, all dimensional, mechanical, and surface-integrity criteria have been validated. This rigorous documentation workflow supports auditing procedures, long-term maintenance planning, and integration into complex mechanical assemblies.
